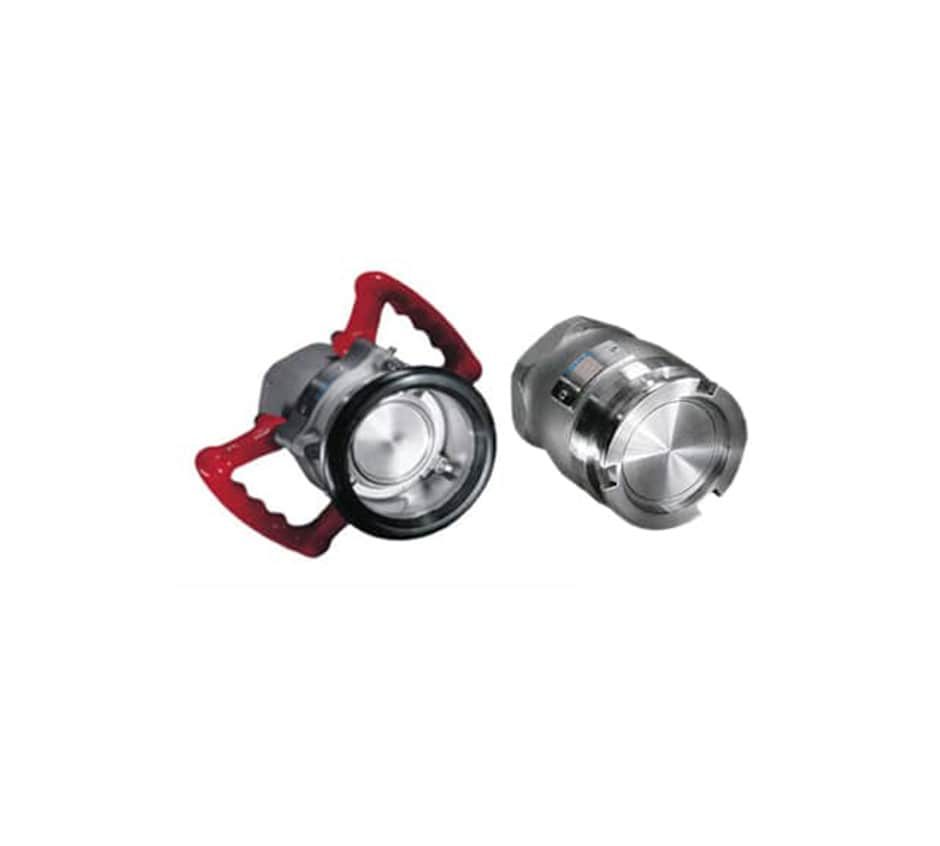

In sizes from 1” to 6” and a wide range of material options, TODO-MATIC® Dry-Break® couplings offer advanced fluid handling solutions for a diverse range of industries.
Designed for safe and easy use with minimum operator intervention. TODO-MATIC® couplings offer an unbeatable combination of technical, safety and performance features.
Major offshore exploration, chemical, pharmaceutical and petro chemical companies rely on TODO-MATIC® couplings to safely transfer their most aggressive or valuable products.
Sizes: 1”, 2”, 2.5”, 3”, 4”, 6” /DN25, DN50, DN65, DN80, DN100, DN150
Materials: Aluminium, Brass & Stainless Steel, others on request
Seal: FKM (Viton), NBR, EPDM & other seals can be purchased
Working Temperature: -20°C to +80°C
2” Alum: 16 Bar (232 PSI)Other Alum: 10 Bar (145 PSI)
Brass: 10 Bar (145 PSI)
Stainless Steel: 25 Bar (363 PSI)
End Connections: BSP/NPT/ PN10 & 16/PN25 & 40/ANSI 150 & 300/TTMA
TODO is committed to providing the highest quality products, and so the materials of construction of TODO-MATIC® DRY-BREAK couplings are specifically selected for the best possible performance in the most diverse range of applications.
To discuss your options in full with an expert from our team, please call on +44 (0)1235 512500 or email sales@asleurope.com.
